Shenzhen IP65 Transparent LED Display: Whaley Official Store

Understanding the Need for a Reliable IP65 Transparent LED Display Source in Shenzhen

Anyone searching for a Shenzhen IP65 transparent led display official store is typically dealing with a specific set of rental and stage industry challenges: heavy cabinets that slow down rigging, transport costs that climb with every kilogram, and the need for structural flexibility across flat, curved, and right-angle stage designs. Transparent screens used in live stage environments also face a unique problem set—they must resist wind and maintain flatness over long periods of use, all while staying light enough to move quickly between venues. Shenzhen Canmingxing Technology Co., Ltd., operating under the brand name WHALEY (also registered as HK Whaley Technology Limited), has built its rental display strategy directly around these pain points.

Whaley's WBlaze-T Series: A Rental-Focused Transparent LED Display Line

Whaley positions its WBlaze-T series as a rental LED display line built specifically for high-end stages, theaters, and rental applications. The strategic emphasis is on four qualities: lightness, transparency, rapid installation, and modular flexibility. This is not a general-purpose display product—it is engineered around the realities of touring productions, temporary stage builds, and theatrical scenic work where every hour of setup time and every kilogram of cabinet weight has a direct cost impact.

Lightweight Carbon Fiber Design for Faster Installation

At the core of the WBlaze-T series is a carbon fiber composite cabinet frame. This material choice reduces cabinet weight by 50% compared to conventional structures and increases installation efficiency by 50%. The lighter structure also contributes to lower EMI, which supports the demanding electrical environments common to stage and rental setups. For crews working under tight load-in and load-out schedules, this weight reduction translates directly into faster rigging and lower transport costs.

IP65 Protection and GOB Process for Long-Term Durability

The IP65 protection rating is central to why the WBlaze-T series is suited for rental and stage use, where displays are frequently exposed to dust, moisture, and variable outdoor or semi-outdoor conditions. Combined with a GOB (Glue-on-Board) process that guards against bumps and scratches, the display maintains long-term surface flatness without warping. This durability profile is backed by a rated service life of 50,000 hours or more, giving rental operators confidence that the hardware will withstand repeated setup and teardown cycles across many events.

Modular Cabinet System for Flexible Stage Design

Creative stage design often requires more than a single flat panel. The WBlaze-T series addresses this with four interlocking cabinet sizes—T-A, T-B1, T-B2, and T-C—that freely combine to support flat surfaces, internal and external curves, and right-angle splicing. This interlocking system allows stage designers to build everything from large seamless visual surfaces to detailed creative shapes, including cube-style structures, without switching product lines. Front and rear module maintenance, along with interchangeable T3.9 and T7.81 module compatibility, further reduce service complexity for technical crews managing multiple installations.

Technical Specifications Behind the WBlaze-T Series

The WBlaze-T series is defined by a consistent set of technical metrics across its configurations. The refresh rate reaches 7680 Hz with 16-bit grayscale processing, and the standard module size is 500*250 mm. The viewing angle is rated at ≥160 degrees, and arc lock angles are available at 0, ±2.5, ±5, ±7.5, and ±10 degrees to support curved installations. Maximum power consumption is 320 W/m², with average power consumption at 160 W/m², running on AC100-240V operating voltage. The series supports maximum lifting and seating heights of 20 meters. Operating conditions are rated from -20°C to +45°C with 10% to 90% relative humidity, while storage conditions extend from -40°C to +60°C at the same humidity range. Whaley notes that these figures are theoretical values obtained under test conditions, and actual usage may vary slightly due to individual differences, software versions, or environmental factors.

Cabinet Models and Pixel Pitch Options

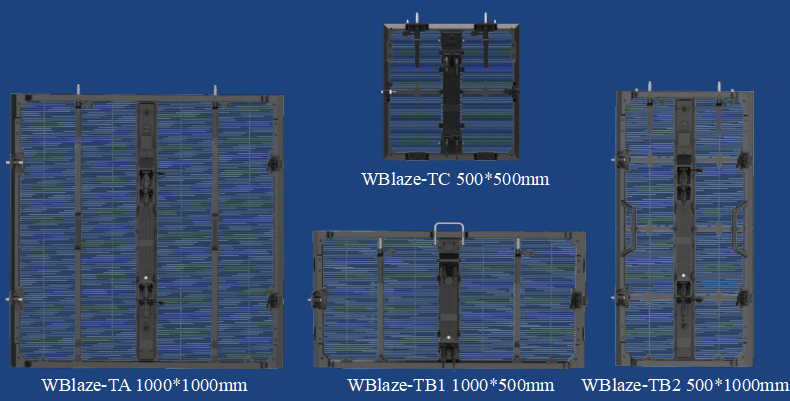

The WBlaze-T series full product lineup includes four cabinet models and three pixel pitch models, for a total of seven products. The cabinet models are T-A (10001000mm), T-B1 (1000500mm), T-B2 (5001000mm), and T-C (500500mm). Each size serves a distinct layout purpose: T-A supports large-format flat or curved screen areas, T-B1 enables wide horizontal layouts, T-B2 supports tall vertical configurations, and T-C allows compact, detailed, or irregular shapes. Weight figures illustrate the lightweight design across the range—for example, T-A weighs 10.5 kg in the T3.9-7.8 configuration and 10 kg in the T7.8 configuration, while the smaller T-C weighs 4.6 kg and 4.4 kg respectively in those same configurations.

On the pixel pitch side, three models are available: T3.9-7.8, T5.9, and T7.8. The T3.9-7.8 model offers 3.9mm horizontal and 7.8mm vertical pixel pitch with black light brightness up to 2000 nits and white light up to 4500 nits, suited for detailed stage and theater visuals. The T5.9 model uses SMD1921 LEDs at a 5.9mm pixel pitch, balancing visual density and brightness with black light up to 1600 nits. The T7.8 model provides 7.8mm pixel pitch with a hollowed-out module design for higher transparency, rated at black light up to 1500 nits, both with white light up to 4500 nits.

Service and Delivery Capabilities

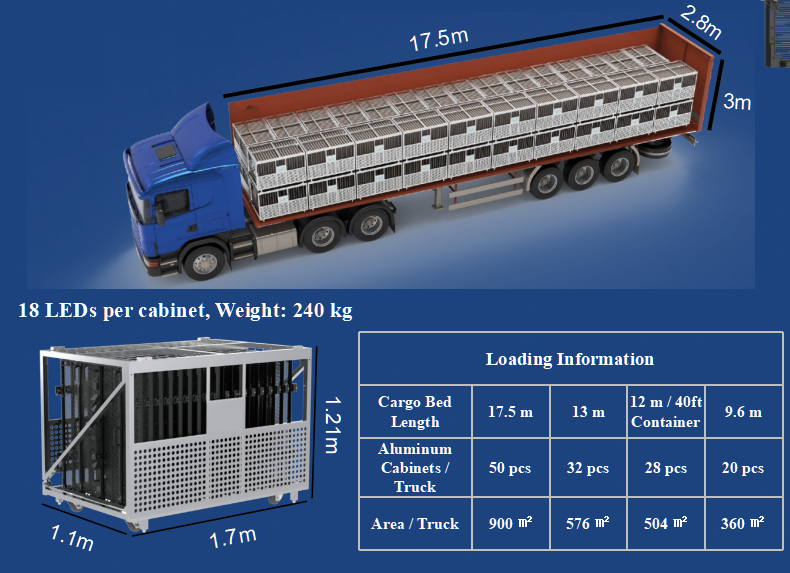

Beyond hardware, Whaley supports its rental clients with practical delivery infrastructure. Quick lock mechanisms enable fast mounting and hoisting, while a quick-assembly trolley system lowers both transportation and installation costs. Loading data reflects this efficiency: a 17.5M cargo box holds 50 aluminum trolleys per car, covering 900m²; a 13M box holds 32 trolleys covering 576m²; a 12M/40DV box holds 28 trolleys covering 504m²; and a 9.6M box holds 20 trolleys covering 360m². Service scope includes front and rear module maintenance and after-sales support, with interchangeable module compatibility built in to simplify field repairs.

Industry Applications

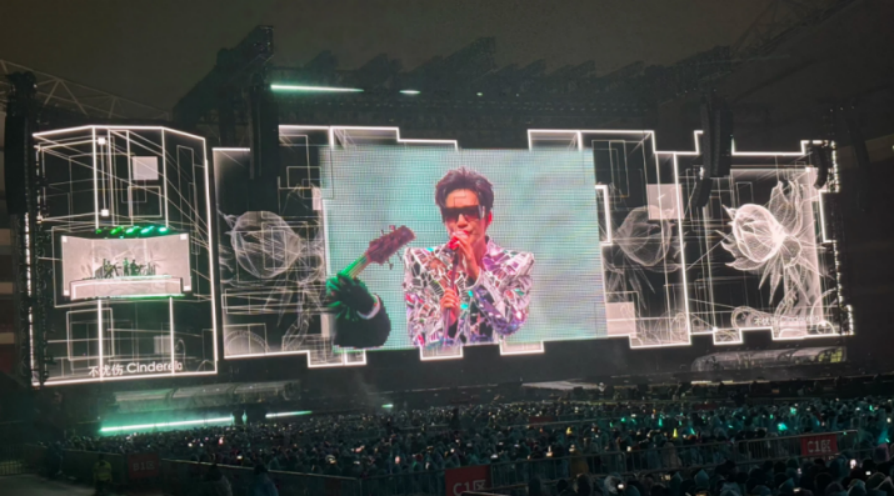

The WBlaze-T series is designed for three primary industry contexts: high-end stages requiring large seamless visual surfaces or detailed creative structures, theaters needing transparent scenic display capability, and rental operations that depend on fast build-and-strike cycles along with dense, efficient transport loading.

Why Choose Whaley as Your Transparent LED Display Partner

For businesses searching for a Shenzhen IP65 transparent led display official store, Whaley—through Shenzhen Canmingxing Technology Co., Ltd. and its HK Whaley Technology Limited entity—offers a rental display solution engineered specifically around the operational realities of stage and rental work. The combination of carbon fiber lightweight construction, IP65-rated durability, modular interlocking cabinets, and flexible pixel pitch options gives rental operators, stage designers, and theater technical teams a coherent product family rather than a single fixed configuration. With documented technical specifications, transparent weight and resolution data across all cabinet and pixel pitch variants, and service capabilities built around real-world installation and maintenance needs, the WBlaze-T series represents a considered response to the specific demands of transparent LED display work in stage and rental environments.
